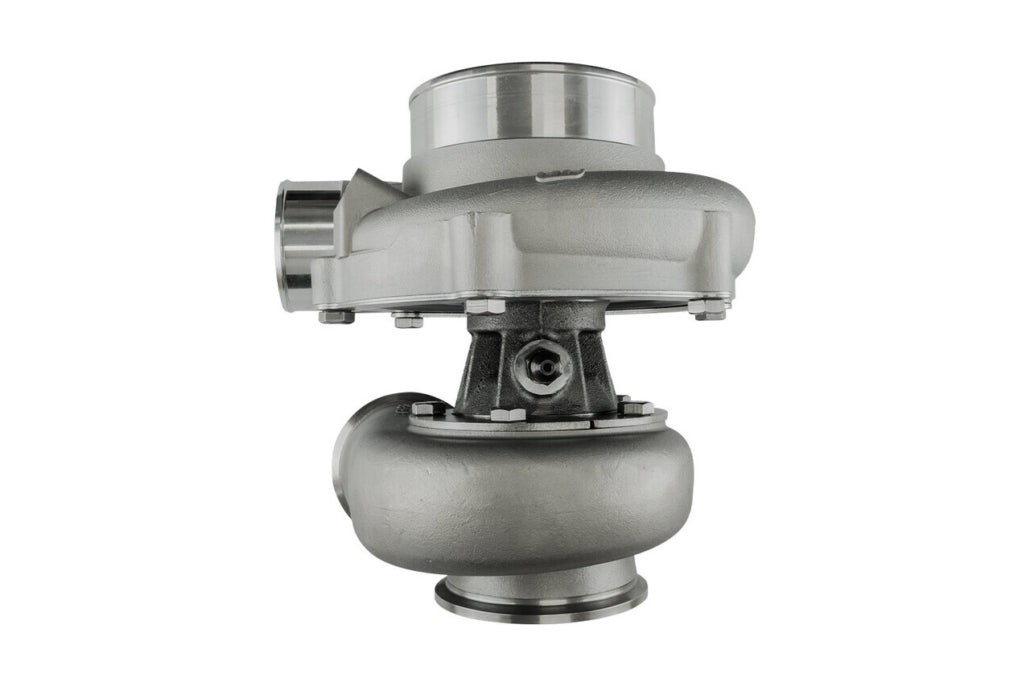

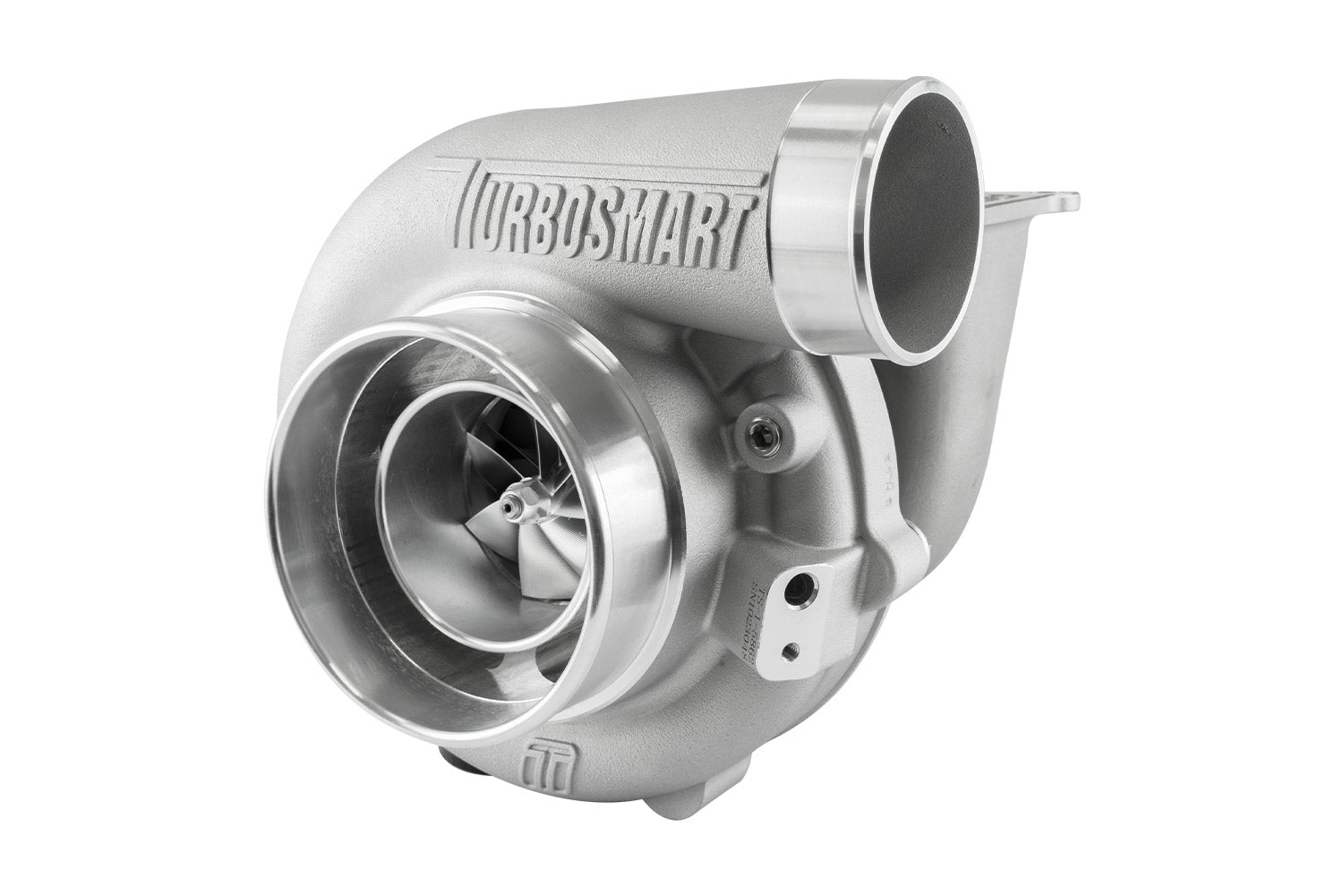

Turbosmart TS-1 Turbocharger 5862 External Wastegate

Turbosmart TS-1 Turbocharger 5862 External Wastegate

Regular price $3,389.95 AUD
Regular price Sale price $3,389.95 AUD
Sale Sold out
Shipping calculated at checkout.
Turbine Housing

Smaller, Lighter and Faster – Turbosmart’s turbocharger series has been developed to leverage modern materials, design and manufacturing techniques to create a turbocharger range that meets the demands of both motorsport, and performance enthusiasts alike.

Every Turbosmart turbocharger comes standard with everything you need for installation, weld flanges, V-band clamps, gaskets, oil feed and drain fittings are included.

The TS-1 series are oil cooled turbochargers with lightweight investment cast turbine housings, a proprietary bearing and main shaft combination which will provide transient response you never knew possible with the type of performance, quality, reliability and support you’ve come to know Turbosmart for.

The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds which is mated with a unique turbine wheel to ensure power at high loads and flow is maintained.

All Turbosmart turbochargers have been designed with an engine end-to-end approach aiming to achieve power through reduced back pressure and high performance turbines – while being smaller, lighter and faster in response than other solutions on the market.

Technical Specifications

  • Compressor Inlet: 4″ / 101.6mm
  • Compressor Inducer: 58mm
  • Turbine Inlet: T3, T4 or V-Band Flange
  • Turbine Exducer: 62mm
  • Turbine AR: 0.63 or 0.82
  • Turbine Outlet: V-Band (3.00″)
  • Weight: 6.06kg / 13.3lbs
  • Horsepower Rating: 600-750HP

Included Components

  • 1 x Turbosmart Performance Turbocharger
  • 1 x Weld Flange (Turbine outlet)
  • 1 x V-Band Clamp (Turbine outlet)
  • 1 x Oil drain gasket
